Turn waste tyre into new energy
8 Years
| Ask Lasest Price | |
| Brand Name : | HNJZ |
| Model Number : | 20ton |
| Certification : | CE |
| Price : | USD 400000 |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | USD 28 sets per month |
| Delivery Time : | 30 days |

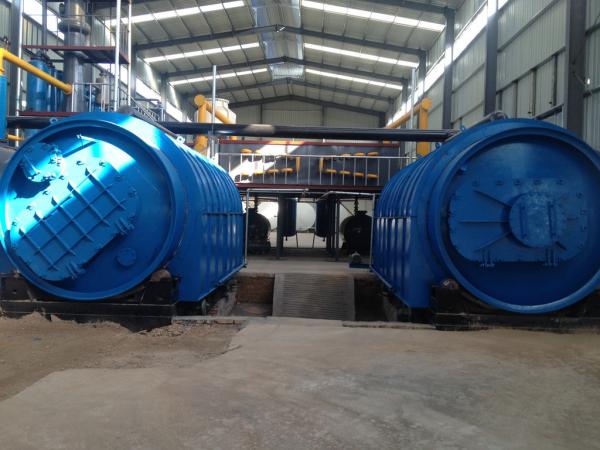

Automatic 25T Fully Continuous Pyrolysis Machine Tire To Oil Plant
Waste Tire Pyrolysis Plant can convert various waste tires and
rubber into pyrolysis oil, carbon black, steel wires and
combustible gas.
waste tyre pyrolysis plant adopt the latest pyrolysis technology
and process the waste tyres/plastics with high temperature in a
oxygen-free condition. Through the waste tyre pyrolysis process,
you can get fuel oil, carbon black, steel wire and combustible gas
from waste tyres.
Features of Continuous Tyre Pyrolysis Plant
1). Continuous Operation
The latest continuous-feed system has a much bigger process
capacity since it doesn’t require the starting and the stopping in
the
pyrolysis reaction circle. The increased automation clearly has the
big advantage of reduced downtime, reduced labor cost and increased
efficiency over the batch feed generation
Technical Specification
| Item | fully continuous used tyre pyrolysis plant |
| Type | HNJZ-25 |
| Capacity | 25 T/D |
| Operating Temperature | ≤650℃ |
| Material | Q345R |
| Fuel Consumption in Start | 400kg |
| Fuel Consumption in Operation | 0(the syn gas from the system be burnt by the system itself) |
| Heating Way | hot air circulation heating |
| Tire Requirement | tyre piece ≤20mm |
| Working Pressure | normal pressure |
| Methods of Flame Restardant | nitrogen blow |
| Total Power | 190 kw |
| Boundary Dimension | 14000mm(L)×2250mm(W)×3750mm(H)×2 |
| Floor Space | 36000mm×8000mm |
| The Highest Install Elevation | 7000mm |
| Labor | 2-3 people |
| Working Life | 5-7 year |
Usage of the end products:
Crude carbon black ----make briquettes for heating use;make bricks to pave street
Pyrolysis fuel oil------ sell directly for heating oil; to refine into diesel grade oil.
Sync gas ------recycle to heat machine during production.
Applications
It is applied to extract fuel oil from waste tires, rubbers,
plastics, soles, life garbage, cable skin and so on .
seperating crude carbon black, steel wires. the sync gas produced
can also be recycled to use as fuel to heat reactor, considerable
cost of tire plastic plant.
Service After Sale
1.Quality warranty period: One year warranty for the main reactor
of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in
buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc.
3. Supply layout according to buyer's workshop and land, civil
works information, operation manuals, etc. to the buyer.
4. For the damage caused by the users, our company provides the
parts and accessories with cost price.
5. Our factory supplies the wearing parts with the cost price to
clients.
|
|
